空冷器设计软件 Aspen Acol+

       Combine the best of Aspen HTFS and Aspen B-JAC with AspenTech's New Application for Design, Checking (Rating) and Simulation of Air-cooled and Other Crossflow Heat Exchangers.

（一）Overview

       Aspen Acol+ is a versatile tool for detailed simulation and optimized design of process air-cooled heat exchangers. Offering sophisticated optimization logic and multiple simulation options, Aspen Acol+ allows you to:

• Design the most economical exchanger for your application
• Take assurance of operational performance that derives from Aspen HTFS+ proprietary research-based methods
• Handle a wide range of exchanger services,from multi-component condensing to boiling heat recovery and                  de-humidifying
• Easily "plug" your crossflow exchanger designs into AspenTech's steady-state simulator so you can accurately evaluate performance in the context of your overall process

（二）Design

       Aspen Acol+ uses sophisticated optimization logic to select the minimum cost exchanger to meet your specified process conditions and geometric constraints.

（三）Check (Rate)

       Aspen Acol+ allows you to determine quickly if a given exchanger will have sufficient area to achieve a specified duty.

（四）Simulate

       Aspen Acol+ offers multiple simulation options, including:

• Outlet temperatures on both sides
• Process inlet and X-side outlet temperatures
• Outlet temperatures on both sides,and X-side flow (natural convection) for "fans off" case
• Process flow and X-side outlet temperature
• X-side flow and X-side outlet temperature
• Process fouling resistance and X-side outlet temperature
• Outlet temperatures on both sides (X-side flow given as velocity and estimated from pressure drop)

       In addition,Aspen Acol+ can evaluate the operating point,in terms of X-side flow and thermal duty,for a defined fan performance curve.

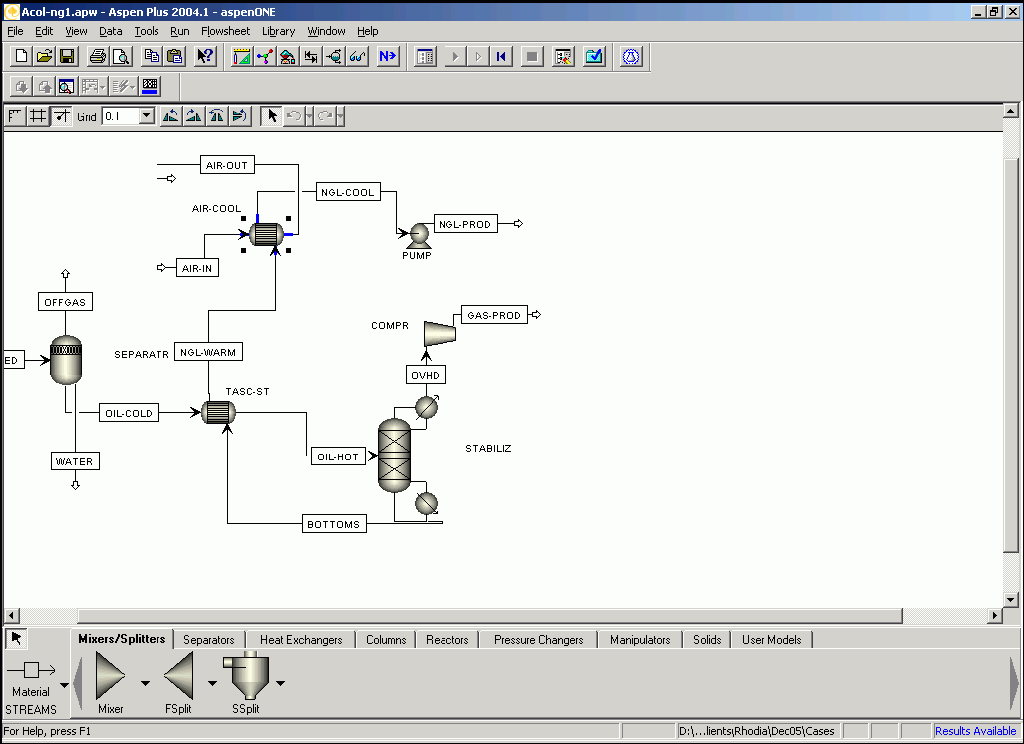

       Aspen Acol+ has a high-level run-time interface with Aspen Plus? allowing you to evaluate accurately the performance of actual heat exchangers within a plant or process.

（五）Process Applications

       Aspen Acol+ provides flexibility that enables a variety of industries – including oil & gas, chemicals, petrochemical and power, as well as engineering contractors and equipment fabricators – to use it on a routine basis. Key process capabilities include:

• Process stream on the tubeside may be either single-phase or two-phase,heated or cooled
• Any mixture(with or without non-condensable gases)in any condition (superheated vapor,saturated vapor,two-phase, saturated or subcooled liquid) may be handled
• Crossflow stream, X-side, may be either dry or humid air, or a mixture of gases

（六）Physical Properties

       Aspen Acol+ offers three databases that collectively contain over 2500 component properties and more than 30 industry-standard VLE methods and mixing rules:

• Aspen Properties, widely used in the chemicals sector
• Aspen COMThermo, the leading physical property database in oil & gas processing
• Aspen B-JAC properties package

       Aspen Acol+ allows you to use the installed property databases, and import properties from process simulators or from your own properties software. You may also specify properties directly.

（七）Aspen Acol+: Key Technical Features

• Application selections. Air-cooled heat exchangers, heat recovery, air condition-ing, charge air coolers, A-frame and
  V-frame configurations.
• Tubes/types. Plain, high fin, low fin,serrated fin, studs, tube-in-plate (up to four different tube types in each bundle)
• High fin types. Integral, G, L, extruded, bi-metallic, shoulder grooved
• Header types. Box, cover plate, D-header,manifold, U-tube
• Passes. Up to 50 in simple and complex arrangements
• Bundle size. Two to 100 rows, with multiple bundles per bay and multiple bays per unit
• Draught. Forced, induced, no fans
• Process side. Single-phase heating or cooling, boiling or condensing
• Tubeside enhancements. Specified on a pass basis, twisted tapes, enhancement factors, j and f input
• Specification of inlet distributions of temperature and velocity, storage and use of performance of proprietary sur-
  faces, inclusion of radiative heat transfer
• Fouling. Standard resistance or tubeside as a function of velocity, temperature,quality, phase or length; X-side as a
  function of row

（八）Output

       Aspen Acol+ uses the power and flexibility of the Microsoft Windows environment to allow you to explore all aspects of exchanger performance. In addition, Aspen Acol+ is designed to support "drag & drop" interfacing with Microsoft? Excel, as well as high level communication with other software. Thermal output includes:

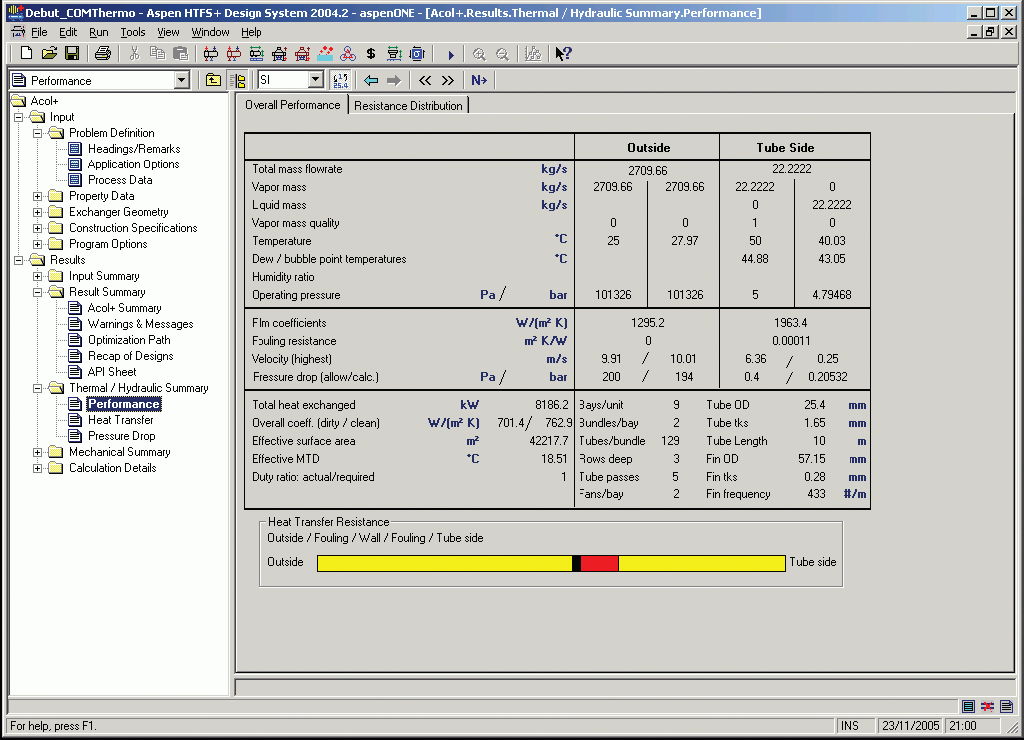

• Summary of exchanger thermal-hydraulic performance

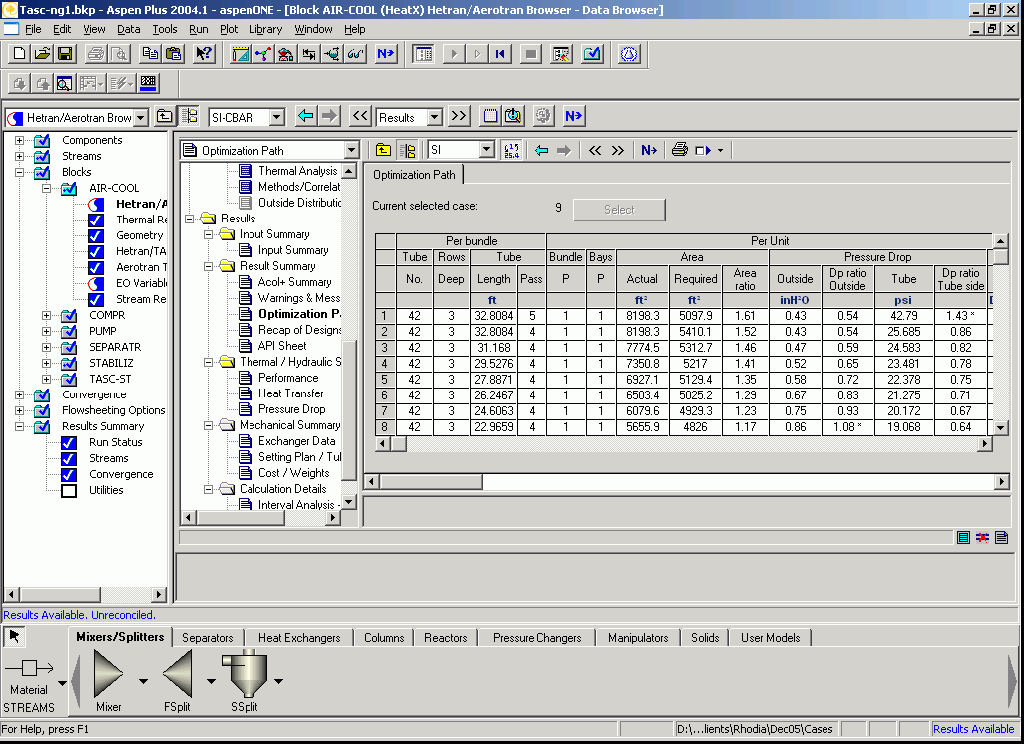

• Optimization path that identifies the most economical design selection, possible alternate designs, and controlling design constraints
• Extensive warning and error reporting, alerting you to potential operational problems

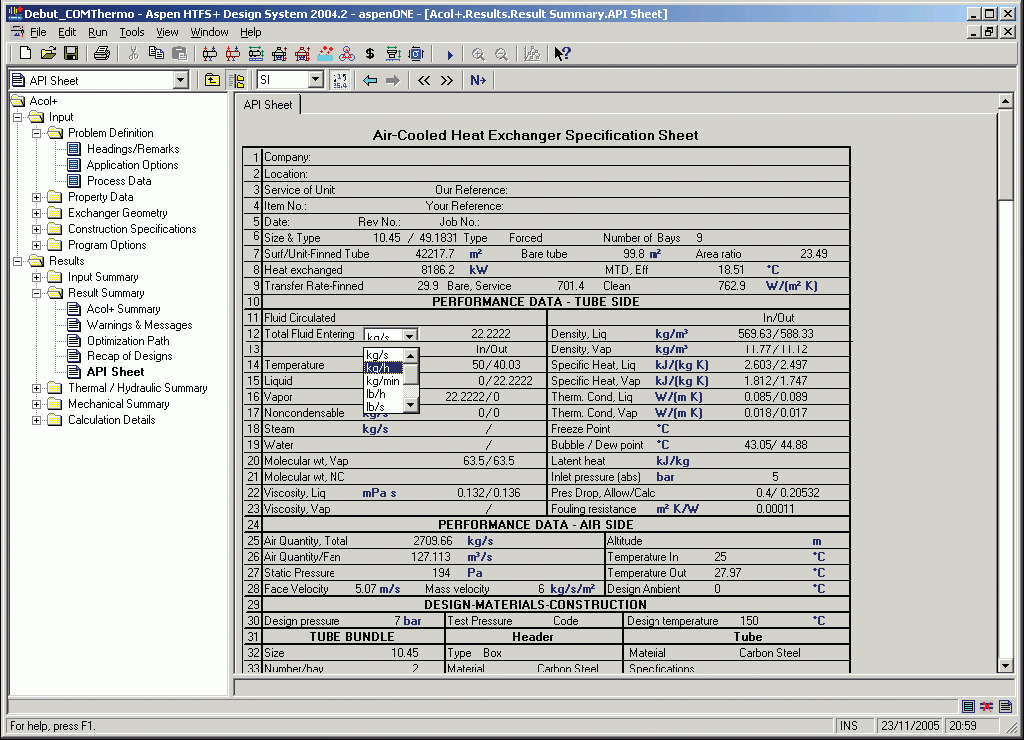

• Fully completed API data sheet, including actual material specifications

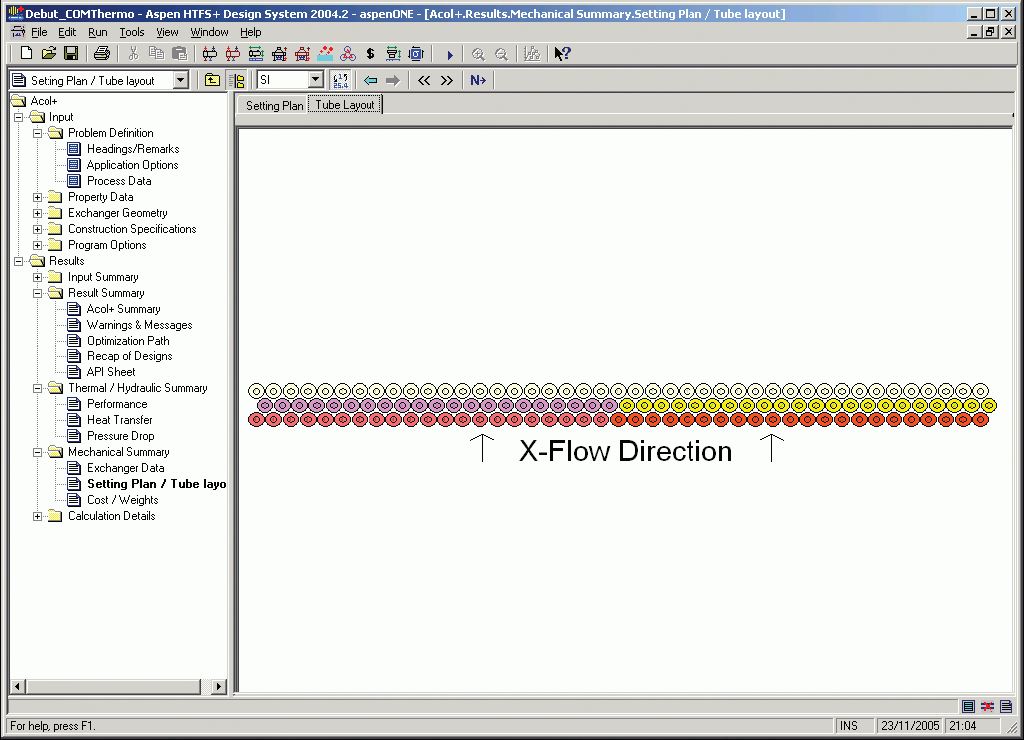

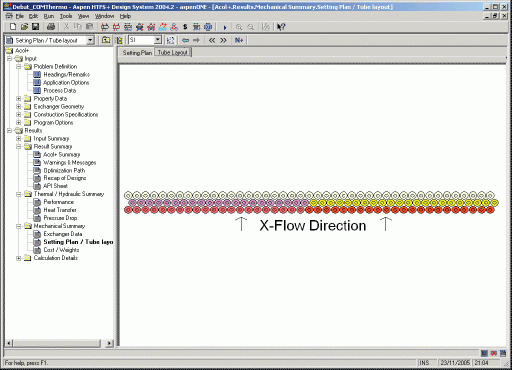

• Interactive tube layout, allowing for rapid specification of simple and complex pass arrangements

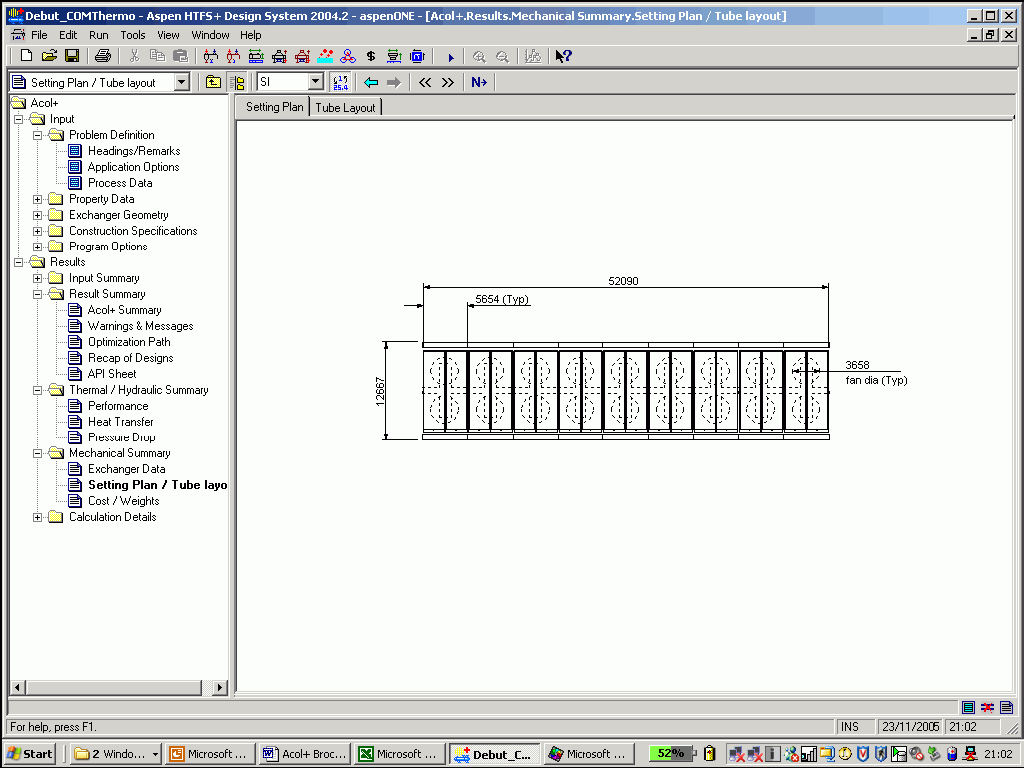

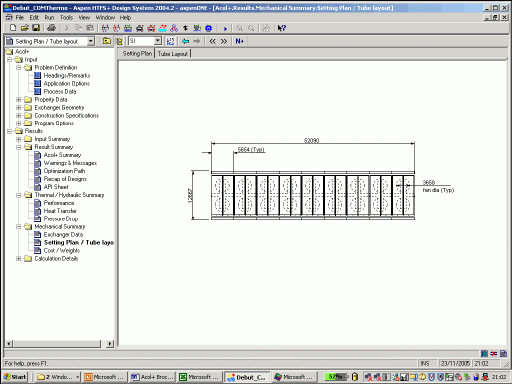

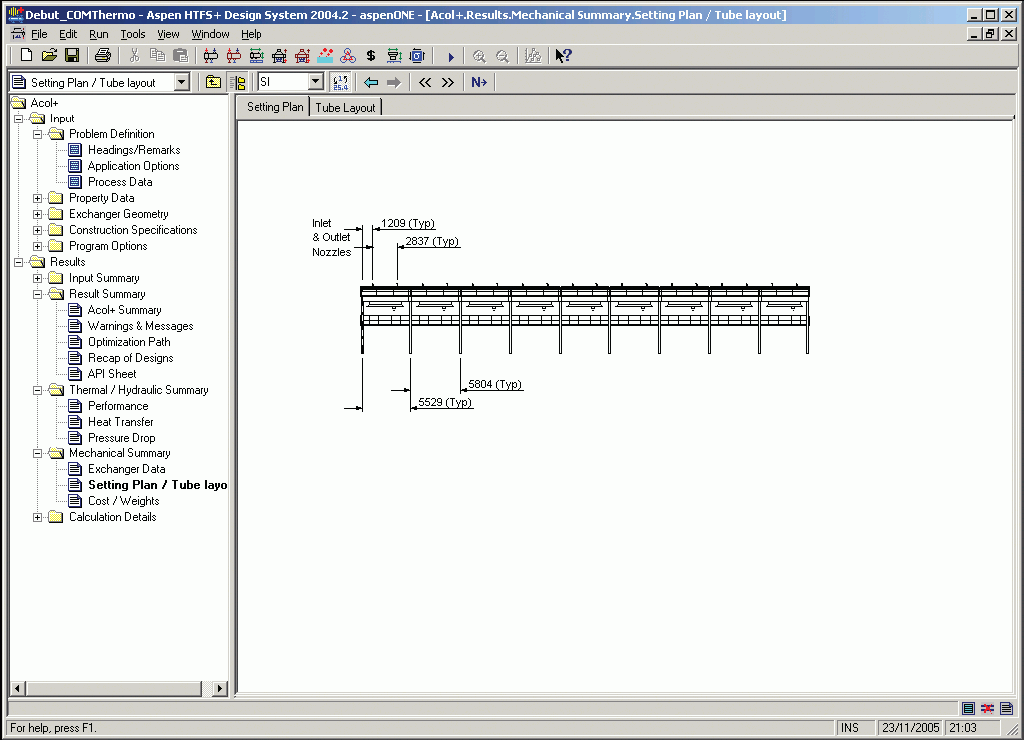

• Setting plan drawings for API-type units and tube pass layout drawing
• Weight and budget costing estimates
• Detailed tubeside, X-side and nozzle pressure drops
• Detailed tabulation of incremental calculations
• X-side installation and fan noise data
